How a Digitizer Works

✷ A Digitizing Board is an electrical-magnetic board and pointer (pen or cursor) that can send highly accurate XY points to a computer.

✷ The board is about an inch thick, contains an electrical grid underneath with a hard Formica surface.

✷ The digitizer's pen or cursor (puck-like device with magnifying glass) creates a magnetic field which is "sensed".

✷ Press the tip of the pen or push a button on the cursor and a highly accurate XY point, representing this location, is sent to the computer through a USB connection.

✷ The Logic Trace software then turns those points or stream of points into a DXF file.

✷ The pen stylus does not need to be touching the board, the board can sense the tip of the pen almost an inch above the surface without losing accuracy. Digitize through paper, plastic, cardboard, glass.

GTCO Calcomp Drawingboard VI

GTCO Calcomp DrawingBoard VI

✷ Industry's Highest Resolution and Accuracy Board

✷ Resolution up to 12,700 lines per inch, Accuracy levels offered: ±0.010" and ±0.005"

✷ Utilizes corded or cordless pen stylus, 4 button or 16 button cursor

✷ Sizes: 44x60" Active Area (54x70" Actual Size), 36x48" active (44"x60" actual), 24x36" (32x44"), 20x24"(26x30), 12x18" (16x24), 12x12" (16x16)

✷ Integrated USB and RS-232 serial connections (RS-232 Serial requires optional power supply)

✷ Tabletworks Windows driver included.

✷ Tablets are made in Scottsdale, Arizona, USA and have a two year Manufacturer's Warranty

✷ The GTCO Calcomp DrawingBoard VI works with almost all digitizing software including all of The Logic Group's digitizing software."

GTCO Rollup III

✷ GTCO Calcomp Rollup III digitizing tablet is a flexible digitizer, light-weight and created for easy portability.

✷ Innovative sensing technology and precision transducers provide 2,540 lpi/100 lpmm resolution

✷ Corded click tip pen with two side buttons and corded 16 button cursor

✷ Connects to a computer through a USB or serial port.

✷ Two sizes 30" x 36" active area (32"x44" actual size) and 36" x 48" active area (44"x60"actual size)

✷ Only 0.078 in (2.0 mm) thick and easily rolled for storage or transport to various task sites

✷ Made in Scottsdale, Arizona USA and have a two-year warranty

✷ The GTCO Rollup III works with almost all digitizing software including all of The Logic Group's digitizing software.

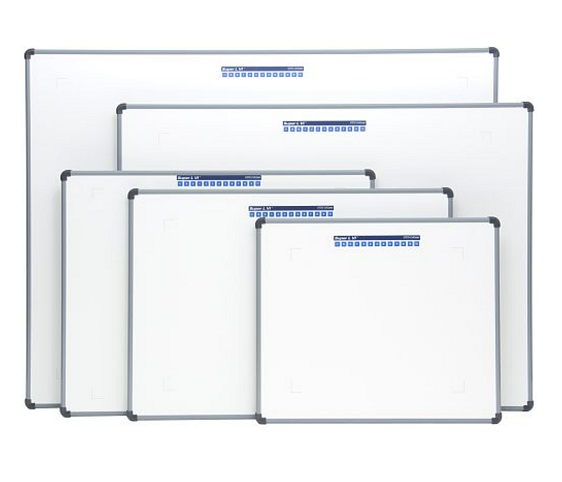

GTCO Super L VI

✷ This large-format digitizer offers greater flexibility and patented sensing technology for enhanced performance of high-quality blueprints

✷ Provides ±0.010 in (0.25 mm) accuracy and up to .004” (.01mm) resolution

✷ Corded or cordless pen stylus or 16 button cursor available

✷ Power from the USB cable

✷ Lightest rigid tablet available today

✷ Provides quick and easy setup

✷ State-of-the-art materials, durable, tough work surface, backed by two-year limited warranty

Pens & Cursors

Pens and Cursors

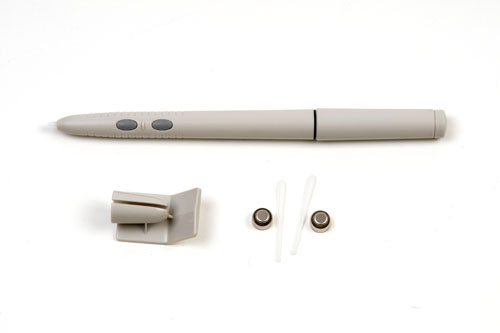

Cordless Pen Stylus

Drawingboard VI - Super L VI

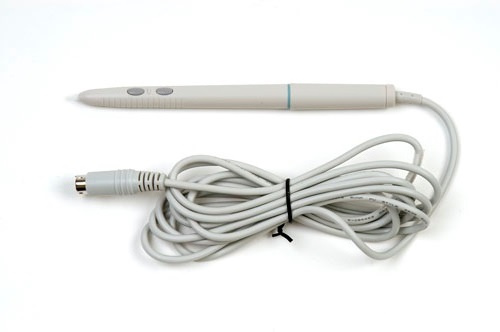

Corded Pen Stylus

Drawingboard VI - Super L VI

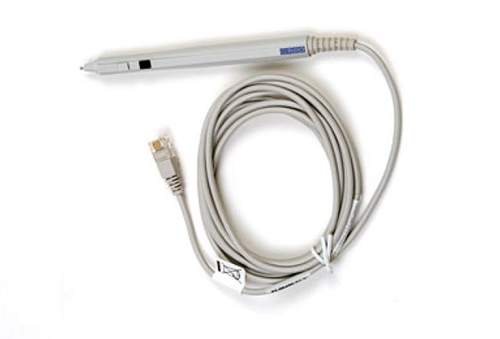

Corded Pen Stylus

Rollup III

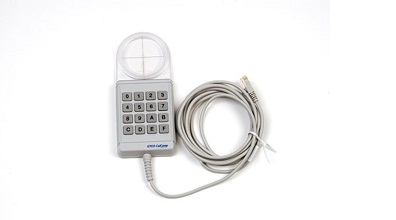

Corded 16 Button Cursor

Rollup III

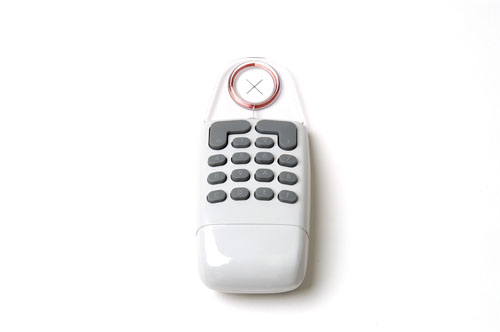

Cordless 16 Button Cursor

Drawingboard VI - Super L VI

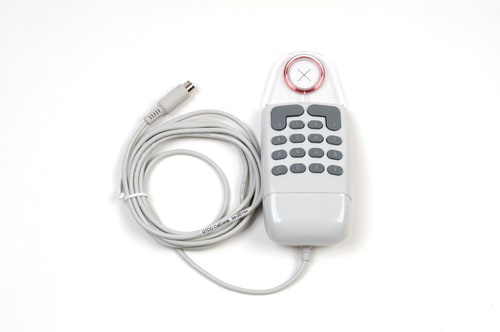

Corded 16 Button Cursor

Drawingboard VI - Super L VI

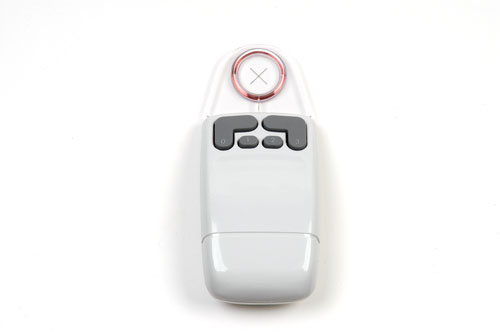

Cordless 4 Button Cursor

Drawingboard VI - Super L VI

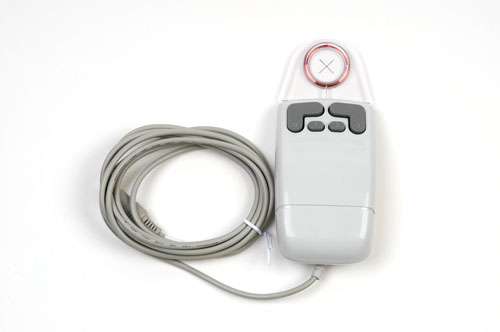

Corded 4 Button Cursor

Drawingboard VI - Super L VI

Accessories

Accessories

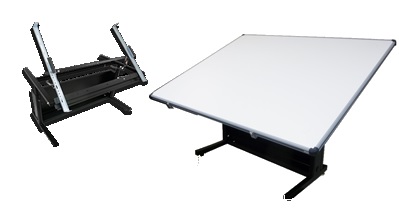

Digitizer Stand

Drawingboard VI - Super L VI

Quikruler Attachment

Super L VI - Rollup III

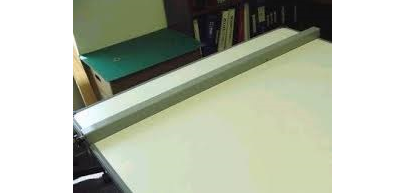

Plan Hold Down Bar

Drawingboard VI - Super L VI

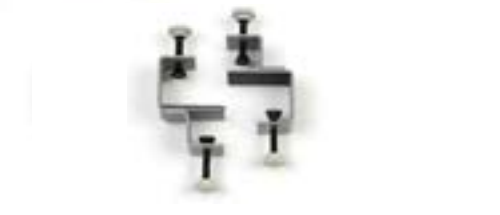

Plan Clamps

Rollup III

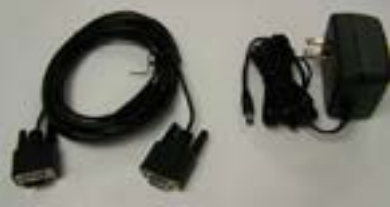

Serial Cable/Power Supply Kit

Drawingboard VI - Super L VI - Rollup III

GTCO Calcomp Digitizers

Click Menu Options Above For Info

Why Use a Digitizing Tablet

✷ Often creating a new object or replicating a previous object requires information to be entered into a computer program.

✷ The fastest way to define points, shapes, and lines from flat 2D objects is to place the object on a digitizing board. The board sends the selected data to the computer.

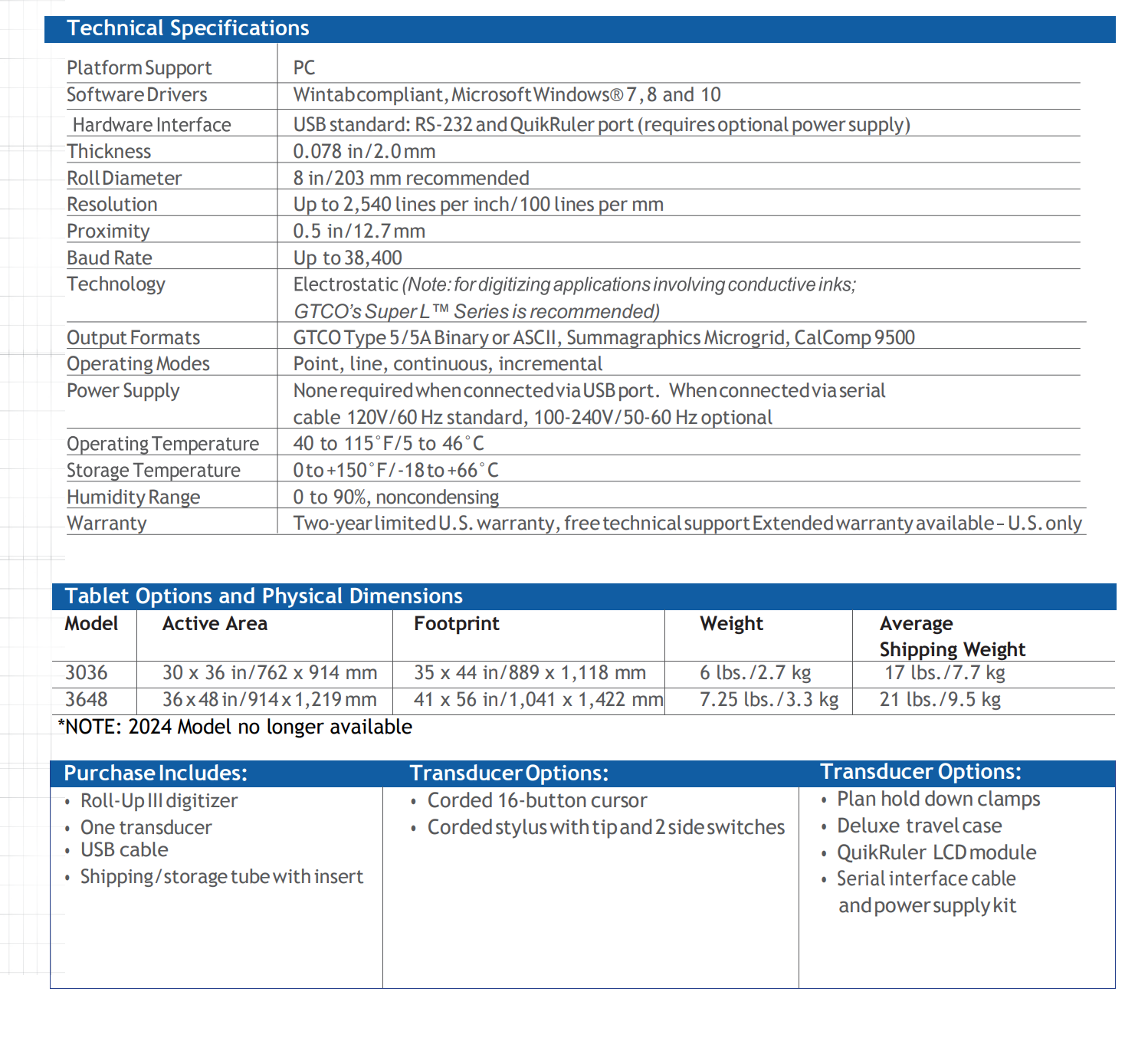

GTCO Rollup III

✷ GTCO Calcomp Rollup III digitizing tablet is a flexible digitizer, light-weight and created for easy portability.

✷ Innovative sensing technology and precision transducers provide 2,540 lpi/100 lpmm resolution

✷ Corded click tip pen with two side buttons and corded 16 button cursor

✷ Connects to a computer through a USB or serial port.

✷ Two sizes 30" x 36" active area (32"x44" actual size) and 36" x 48" active area (44"x60"actual size)

✷ Only 0.078 in (2.0 mm) thick and easily rolled for storage or transport to various task sites

✷ Made in Scottsdale, Arizona USA and have a two-year warranty

✷ The GTCO Rollup III works with almost all digitizing software including all of The Logic Group's digitizing software.

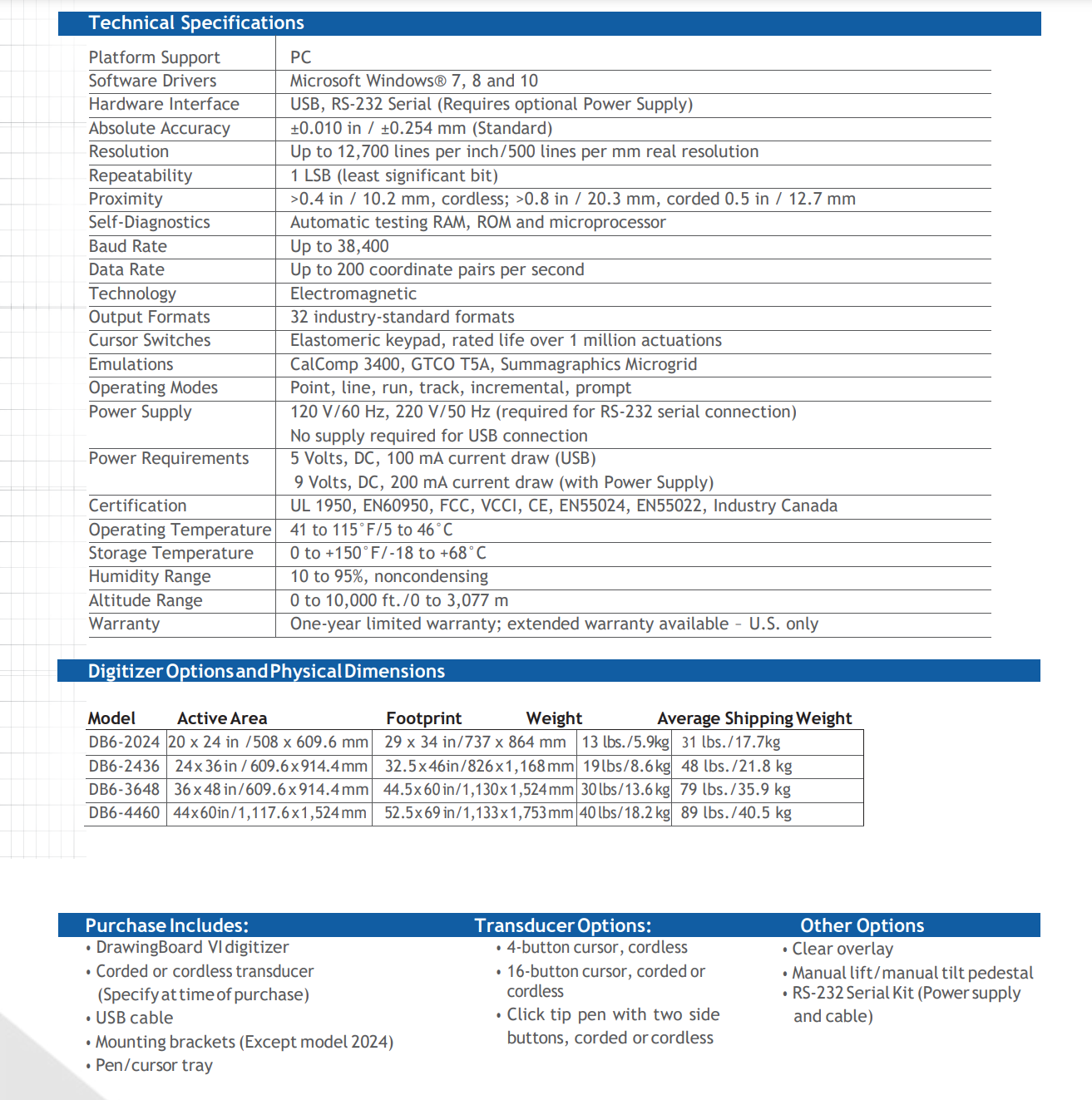

GTCO Calcomp Drawingboard VI Specifications

Logic Trace CNC DXF Digitizing System

Features

Trace object or drawing and create DXF graphics file
Fast and easy
Very accurate with .01" standard, 0.005" accuracy available
Complete tracing system consisting of digitizing board, pen stylus and Logic Trace software for creating DXF files.
Available size boards include 44x60", 36x48", 24x36", 20x24", 12x18" and 12x12"
Metric sizes 110x150cm, 90x120cm, 60x90cm, 50x60cm, 30x45cm and 30x30cm
Multiple boards can be connected for tracing very large patterns: 5x8', 5x12', 5x16', 8x11' and bigger. Metric sizes are 1.5x2.5m, 1.5x3.6, 1.5x4.8m, 2.4x3.3m

Trace point to point or continuously
Generate DXF files with Arcs and Lines or Polylines
Generate Gcode files
Convert DXF files to other formats

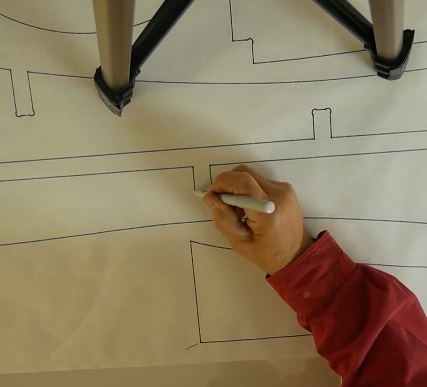

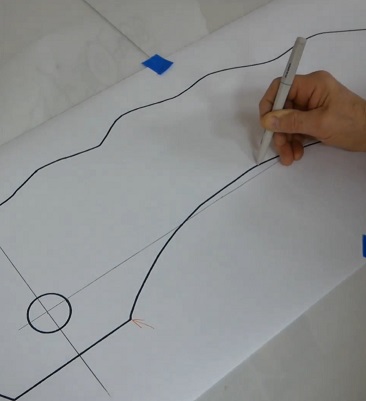

Trace object on digitizer using pen stylus or cursor
Useful in hundreds of different CNC and Cutting machines including routers, waterjets, plasma, metalworking, manufacturing, wood-working, plastics, furniture, upholstery, garments, machining
Useful in hundreds of different industries metalworking, manufacturing, wood-working, plastics, furniture, upholstery, garments, machining, sign-making, boat manufacturing

Trace lines, arcs, curves, points, circles
Place object directly on digitizer or trace from template on digitizer
Pen can register almost an inch above surface of board, trace through paper, cardboard, plastic, mylar
Create accurate graphics files of objects in minutes
Normal scaling is 1:1 but different scaling and sizes possible
English and metric units
Arcs created by digitizing endpoints and any middle point
Complex curves can be created using polylines or digitizing multiple points and arcs automatically created

How a Digitizer Works

✷ A Digitizing Board is an electrical-magnetic board and pointer (pen or cursor) that can send highly accurate XY points to a computer.

✷ The board is about an inch thick, contains an electrical grid underneath with a hard Formica surface.

✷ The digitizer's pen or cursor (puck-like device with magnifying glass) creates a magnetic field which is "sensed".

✷ Press the tip of the pen or push a button on the cursor and a highly accurate XY point, representing this location, is sent to the computer through a USB connection.

✷ The Logic Trace software then turns those points or stream of points into a DXF file.

Who Needs The Logic Tracer

✷ Woodworkers

✷ Metal Fabrication Shops

✷ Glass Companies

✷ Aviation and Aeronautics

✷ Machine Shops

✷ Marine and Boating

✷ Furniture Makers

✷ Upholstery

✷ Sign Makers

✷ Auto Film Protection

✷ Car Racing Builders

✷ Car Restoration

✷ Home Builders

✷ Hobbyists

✷ Dye Cutters

✷ Clothing Tailors

✷ Mom and Pop Shops

✷ And Many More

✷ Any and all industries that need to easily trace a 2D pattern and save it as a vector file for loading into any CNC, CAD or drawing software

Ready to Buy Now?

Go to our Buy Page

Or give us a call 1-512-656-8195 John Walsh

44 (0) 7720 974 993 John Haw

Want to talk to someone now?

In North or South America, Australia
Call, text, or email John Walsh at
1-512-656-8195 [email protected]

in Europe, Africa, or Asia
Call, text, or email John Haw
44 (0) 7720 974 993 [email protected]

Ready to Buy Now?

Go to our Buy Page

Or give us a call 1-512-656-8195 John Walsh

44 (0) 7720 974 993 John Haw

CNC Hardware

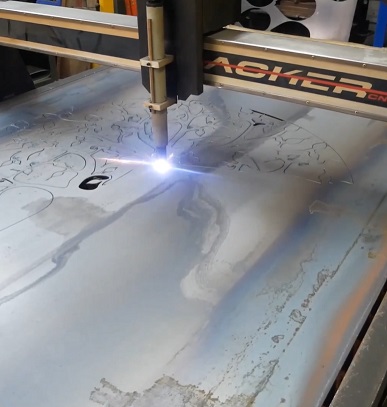

✷ Plasma Cutters

✷ Waterjets

✷ CNC Routers

✷ Laser Cutters

✷ Vinyl Cutters

✷ Plotters

✷ Printers

✷ Fabric Cutters

✷ Any and All CNC Machines

CNC & Cad Software

✷ Plasmacam

✷ Vectric and Vcarve Pro

✷ Autocad

✷ Mastercam

✷ Rhino and

✷ Sheetcam

✷ Enroute

✷ Flashcut

✷ And Many More

Prices

DrawingBoard VI with .01" (.254mm) Accuracy	Price
Size 44" x 60" (110x150cm)	$3149
Size 36" x 48" (90x120cm)	$2829
Size 24" x 36" (60x90cm)	$2399
Size 20" x 24" (50x60cm)	$2095
Size 12" x 18" (30x45cm)	$660
Size 12" x 12" (30x30cm)	$367

DrawingBoard VI with .005" (.127mm) Accuracy	Price
Size 44" x 60" (110x150cm)	$3359
Size 36" x 48" (90x120cm)	$3249
Size 24" x 36" (60x90cm)	$2829
Size 20" x 24" (50x60cm)	$2619

Rollup III Portable	Price
Size 36" x 48" (90x120cm)	$2755
Size 30" x 36" (60x90cm)	$2329

Super L VI	Price
Size 44" x 60" (110x150cm)	$3399
Size 36" x 48" (90x120cm)	$2899
Size 24" x 36" (60x90cm)	$2499
Size 20" x 24" (50x60cm)	$2199

Price includes digitizing board, pen stylus or cursor, USB cable, and Tabletworks Windows driver.

We sell digitizers outside the USA only bundled with our Logic Trace or Jumbo Trace software

We ship freight truck or next day air in the USA and air freight worldwide with the option of local delivery.

Optional accessories include an extra pen stylus or cursor, Quikruler attachment, plan hold down bar or clamps, serial cable and power supply, and digitizer stand.
