2022 Logic Trace System

Completely rewritten, incorporating modern technology to create the best product possible for tracing patterns

Here is what is new:

  • Runs on Windows, Mac, and Linux computers
  • Multiple Languages - English, हिन्दी, Español, Français, عربي, Português, اردو, Indonesian, Deutsch, 日本, Türk, Tiếng Việt, 한국인, Italiano, and Polski.
  • Support for smartphones, ipads, tablets, and external monitors
  • New, always-on digitizer driver, no more tabletworks
  • New moveable - resizable windows, new picture buttons, extremely easy to use
  • High resolution zoomable graphics
  • Run the digitizer from your cellphone
  • Calculate areas, lengths, and perimeters
  • Display the graphics on an external monitor or your ipad
  • Programmable cursor buttons
  • Customizable, turn features on or off

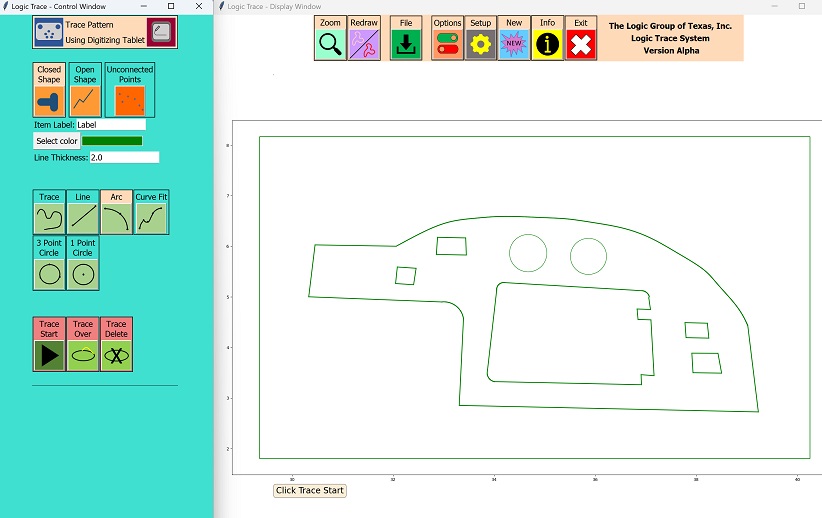

  • Trace patterns on screen
  • ✷ Quickly trace parts and patterns and create DXF files for CNC and CAD

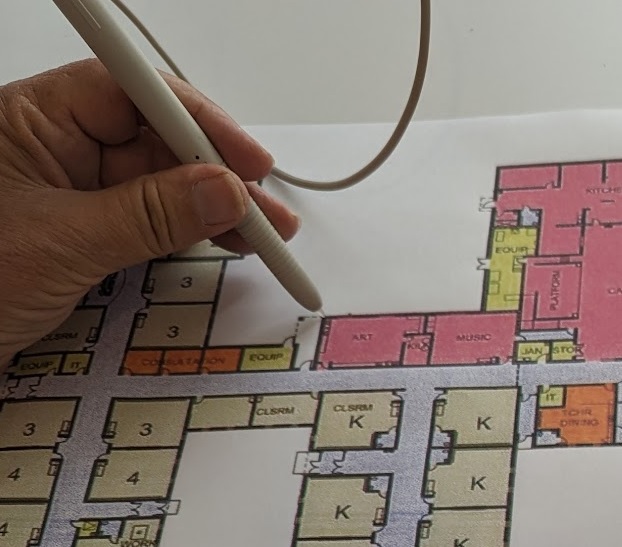

  • ✷ Use a Logic Trace board, pen stylus, and Logic Trace CNC DXF software
  • ✷ Accurately create DXF files in minutes
  • ✷ Board sizes range from 44x60" (110x150cm) down to 12x12" (30x30cm). Boards can be connected for larger patterns
  • ✷ Two accuracies of boards are available 0.01" (.254mm) and 0.005"(.127mm)
  • ✷ Works with plasma cutters, waterjets, laser cutters, vinyl cutters, plotters, any and all CNC machines.
  • ✷ Works with Autocad, Plasmacam, Mastercam, Mach3, Bobcad, Vectric, Vcarve, SigmaNest, Solidworks, Rhino, CorelDraw, Adobe Illustrator, Gerber, any and all CNC and CAD software
  • ✷ Very easy to use, takes less than ten minutes to learn
